Port numbers, URLs, and IP addresses for GovCloud
Before deploying Workload Security in GovCloud, your network administrator needs to configure firewalls, AWS security groups, and web proxies to allow those network services. These parameters are limited in GovCloud to ensure secure connections:
Default settings are displayed. Many network settings are configurable. For example, if your network has a web proxy, you could configure agents to connect through it on port 1443, instead of directly to Workload Security on port 443. If you change the default settings, then firewalls must allow communications via the new settings.

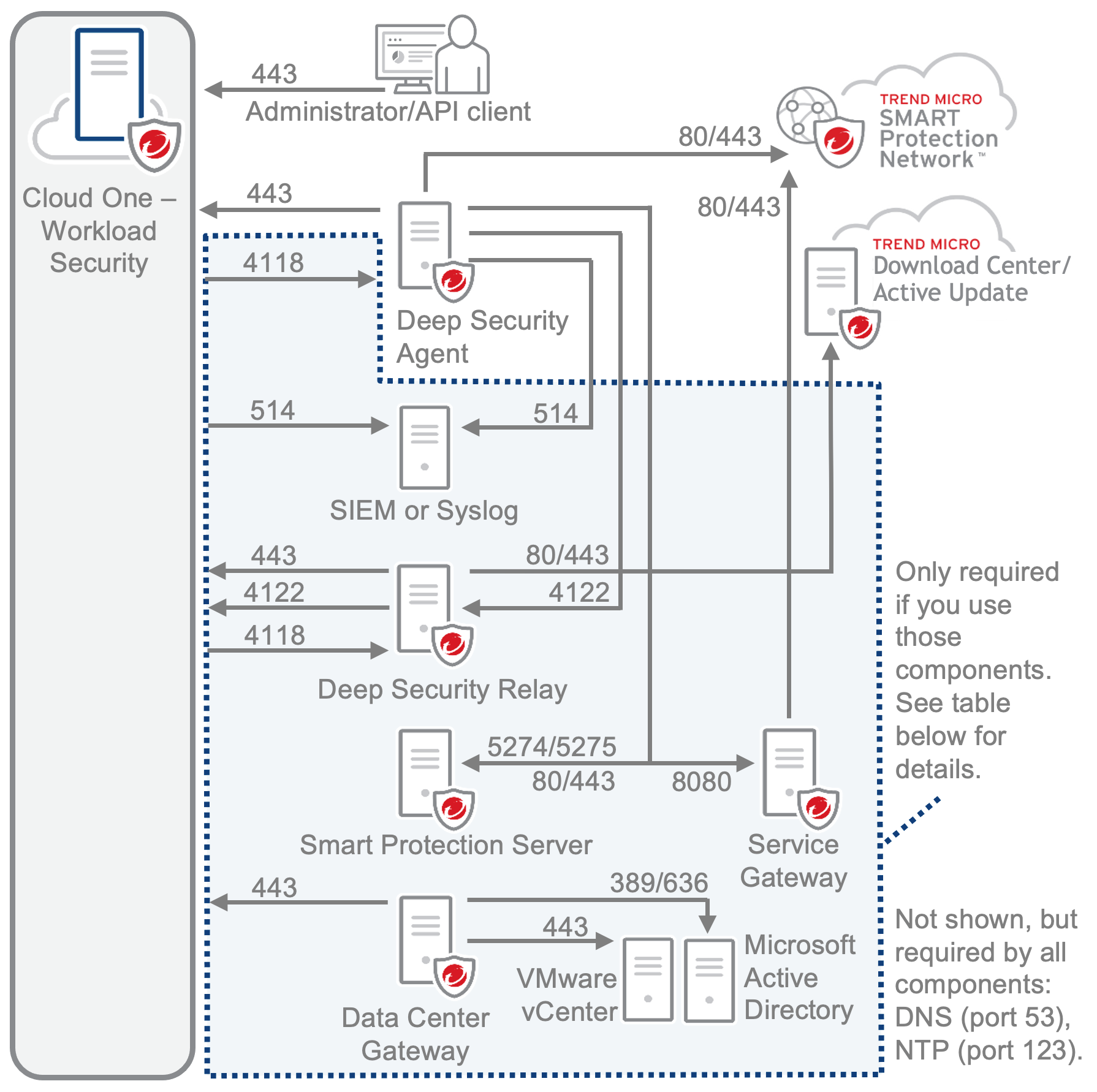

The following network diagram provides an overview:
Required Workload Security IP addresses and port numbers
The following table is organized by source address (the deployment component which starts the TCP connection or UDP session). Replies (packets in the same connection but opposite direction, from the destination address) usually must be allowed, too.
Workload Security servers usually have dynamic IP addresses (that is, other computers in your deployment use DNS queries to find the current IP address of a Workload Security FQDN when required). For the list of Workload Security domain names, see Required Workload Security URLs.
Some ports are required only if you use specific components and features. Some services might have static IP addresses. These exceptions and optional features are indicated.
All ports in the table are destination ports (also known as listening ports). Like many software, Workload Security also uses a range of dynamic, ephemeral source ports when opening a socket. Rarely, ephemeral source ports might be blocked, which causes connectivity issues. If that happens, you must also open the source ports.
| SourceAddress | DestinationAddress | Port(Default) | Protocol |
|---|---|---|---|
| Administrator's computer | DNS server | 53 | DNS over UDP |
| NTP server | 123 | NTP over UDP | |
|
Workload Security |
443 | HTTPS over TCP | |
|
Workload Security Subnet: 3.30.186.224/27 |
SIEM or Syslog server (if any) |
514 | Syslog over UDP |
|
SIEM or Syslog server (if any) |
6514 | Syslog over TLS | |
|
Agents, Only required if you enable bidirectional or manager-initiated communication. |
4118 | HTTPS over TCP | |
| Agents | DNS server | 53 | DNS over UDP |
| NTP server | 123 | NTP over UDP | |
| SIEM or Syslog server (if any) |
514 | Syslog over UDP | |
|
Workload Security |
443 | HTTPS over TCP | |
| Relays (if any) |
4122 | HTTPS over TCP | |
| Smart Protection Network | 80 | HTTP over TCP | |
| 443 | HTTPS over TCP | ||
| Service Gateway (if any, instead of Smart Protection Network, for File Reputation feature) |
8080 | HTTP over TCP | |
| Smart Protection Server (if any, instead of Smart Protection Network, for File Reputation feature) |
80 | HTTP over TCP | |
| 443 | HTTPS over TCP | ||
| Smart Protection Server (if any, instead of Smart Protection Network, for Web Reputation feature) |
5274 | HTTP over TCP | |
| 5275 | HTTPS over TCP | ||
|
Relays (if any) |
All destination addresses, ports, and protocols required by agents (each relay contains an agent) | ||
| Other relays (if any) |
4122 | HTTPS over TCP | |
|
Localhost Only configure if the server's other software uses the same port (a port conflict), or if host firewalls such as iptables or Windows Firewall block localhost connections (server connecting internally to itself). Network firewalls do not need to allow this port because localhost connections do not reach the network. |
4123 | N/A | |
| 80 | HTTP over TCP | ||
| 443 | HTTP over TCP | ||
|
Download Center, |
443 | HTTPS over TCP | |
|
Data Center Gateway (if any) |
DNS server | 53 | DNS over UDP |
| NTP server | 123 | NTP over UDP | |
| Workload Security | 443 | HTTPS over TCP | |
| VMware vCenter | 443 | HTTPS over TCP | |
| Microsoft Active Directory | 389 | STARTTLS and LDAP over TCP and UDP | |
| 636 | LDAPS over TCP and UDP | ||
|
Service Gateway (if any) |
DNS server | 53 | DNS over UDP |
| NTP server | 123 | NTP over UDP | |
| Trend Micro Smart Protection Network (for File Reputation feature) |
80 | HTTP over TCP | |
| 443 | HTTPS over TCP | ||
|
API clients (if any) |
Workload Security | 443 | HTTPS over TCP |
Required Workload Security URLs
Web proxies and URL filters can inspect the HTTP layer of connections: valid certificates, URL (such as /index), fully-qualified domain name (FQDN) (such as Host: store.example.com:8080), and more. Allow all URLs on every FQDN listed in the following table.
For example, agents and relays must be able to download software updates from files.trendmicro.com on port 80 or 443. You have allowed that TCP/IP connection on your firewall. However, the connection contains the HTTP or HTTPS protocol, which can be blocked not only by firewalls, but also by web proxies and web filters. Therefore you must configure them to allow https://files.trendmicro.com/ or http://files.trendmicro.com/ and all sub-URLs.
Some FQDNs are required only if you use specific components and features, as indicated.
| Source Address | Destination Address | Host FQDN | Protocols |
|---|---|---|---|
| Agents, Relays (if any) |
Workload Security |
Agent 20.0 and later:The FQDNs for GovCloud:
|
HTTPS HTTP |
|
Download Center, |
|
HTTPS HTTP |
|
|
HTTPS HTTP |
||
|
Trend Micro Vision One |
|
HTTPS HTTP |
|
| Agents | Smart Protection Network |
Only required for the Global Census feature's behavior monitoring, and predictive machine learning. |
HTTPS HTTP |
Agent 20.0 and later:
Agent 12.0:
Agent 11.0:
Agent 10.0:
Only required for Smart Feedback. |
HTTPS HTTP |
||
Only required for the Smart Scan feature. |
HTTPS HTTP |
||
Only required for predictive machine learning. |
HTTPS HTTP |
||
Only required for the File Reputation feature's behavior monitoring, predictive machine learning, and process memory scans. |
HTTPS HTTP |
||
Only required for the Web Reputation feature. |
HTTPS HTTP |
||
| Smart Protection Server (if any, instead of Smart Protection Network) |
Only required for the File Reputation and Web Reputation features. Other features still require the Smart Protection Network, and cannot use this local server. |
HTTPS HTTP |
|
| Workload Security |
Agents, Only required if you enable bidirectional or manager-initiated communication. |
The FQDNs for GovCloud:
|
HTTPS |
| Data Center Gateways (if any) |
Workload Security |
The FQDNs for GovCloud:
|
HTTPS |
| API clients (if any) |
Workload Security |
The FQDNs for GovCloud:
|
HTTPS |
